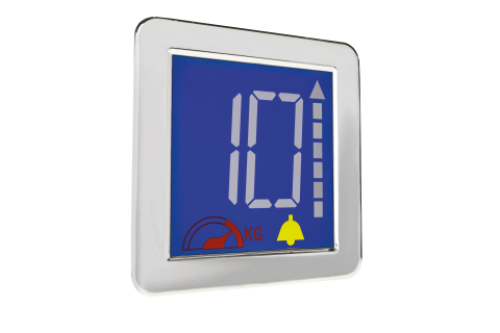

VEGA Icaro LCD Display

---

Landing lcd position indicator.
Lcd model: indicator lcd available in blue or black background.
Fast Fixing: frontal mounting with frame or flush mounting on 1.2 and 2mm faceplates through soldered studs.
Screen: lens polycarbonate (shock-proof and anti-crash).
Colours: white LED on blue background or 5 different colours (navy blue, white, yellow, green and red) on black background.
Common: positive or negative (it can ben selected).
Power supply: 12/24Vdc +/- 10%.
Signals: floors, arrows, out of service.
Optional signals: sent alarm and overload signal.
Integrated and programmable three-tone chime.
Easy programming by a dedicated integrated keyboard.
32 stops in binary code, 11 stops 1 wire for floor.
64 stops in indipendent mode (magnetic sensors).
Up and down arrow (40,5mm).
Communication interface: Vega serial, RS485, CAN, parallel and magnetic sensors.
Possibility to set binary, inverted binary, BCD, Gray and 7 segments codes.
